Stackable LiFePO4 Battery Supplier: 5 Things to Verify Before You Compare Prices

Put two quotations side by side. Both say “stackable LiFePO4 battery.” Both show a tower of modules on a base. Both quote a price per kWh that looks close enough to compare. One of them is a 51.2 V system where the modules sit in parallel on a shared bus. The other is a 400 V string where the same-looking modules are wired in series and need a control unit at the bottom that the quotation never mentioned.

They are not competing products. They are different product categories that happen to share a marketing word.

That is the problem with procurement decisions in this category, and it is why the search results for this term are almost entirely supplier catalogues. Every page explains what that supplier sells. Almost none explain how to check whether what they sell is what you think you are buying, or whether the company behind it can still support the system in year seven.

This guide is the other side of that conversation: the five places where “stackable” quietly means different things, the exact question that exposes each one, and how to tell a real answer from a rehearsed one.

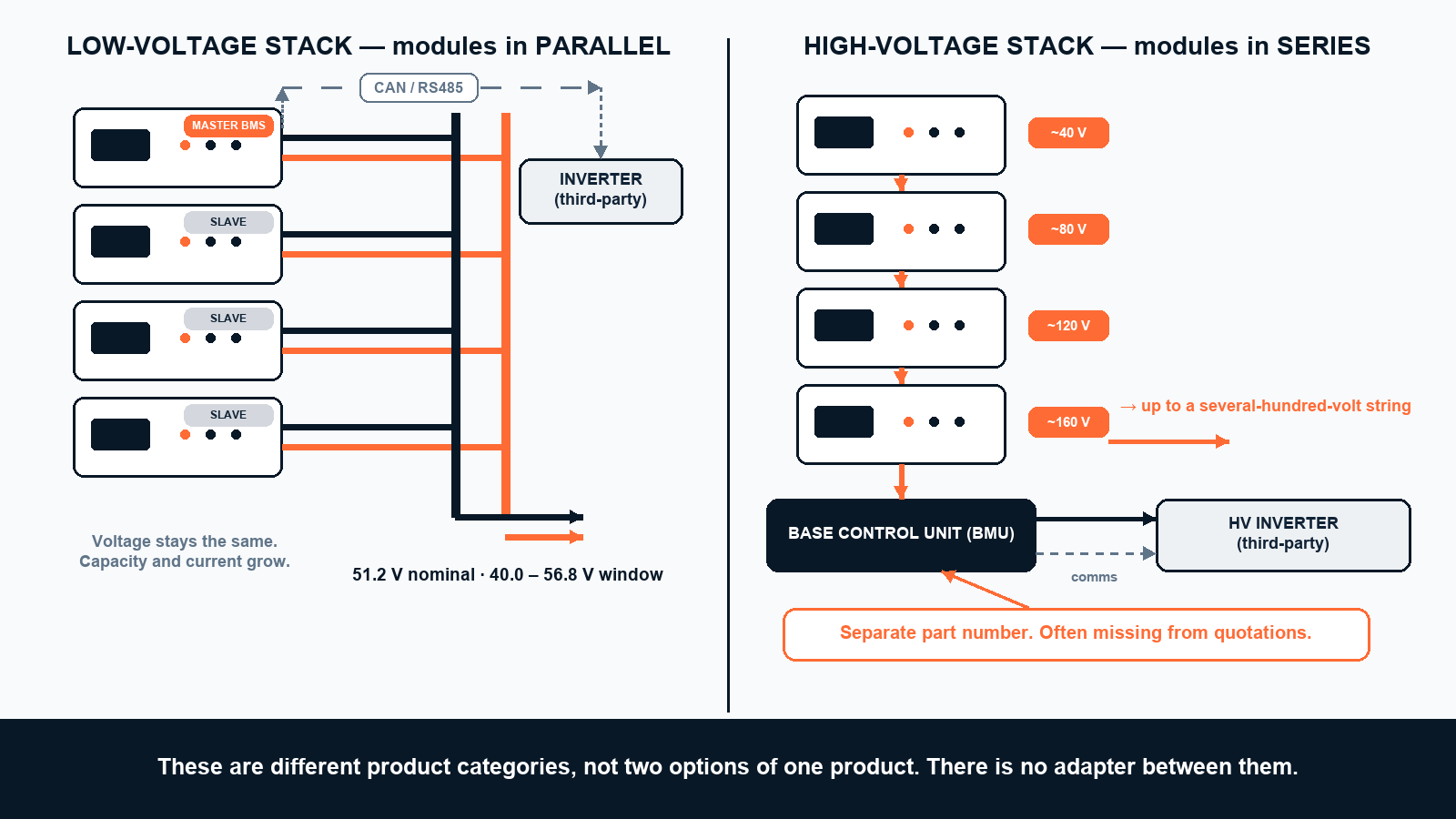

Fault Line 1 — Parallel stack or series stack?

This is the one that turns into a return shipment. Two architectures are sold under the same word, and they are not interchangeable at any point in the system.

In a low-voltage stack, each module is a complete 48 V-class battery, typically 51.2 V nominal, with its own BMS. Stacking them puts them in parallel on a shared DC busbar. The system voltage never changes; only capacity and available current grow. One module is designated master, the rest report to it.

In a high-voltage stack, each module is a slice of a string. Stacking puts them in series. Ten modules of 40 V nominal become a 400 V string. There is usually a separate base control unit (sometimes called a BMU, control box, or high-voltage box) that manages the string, handles contactors, and talks to the inverter. That box is a distinct part number, and on thin quotations it is the line item that goes missing.

The consequence is blunt. A high-voltage stack cannot be connected to a 48 V hybrid inverter, and a low-voltage stack cannot feed a high-voltage inverter’s DC input. There is no adapter. If you have already chosen the inverter, and on most retrofit and EPC jobs the inverter is chosen first, the architecture is decided for you before you look at a single battery datasheet.

If you are still deciding which side of this line your project sits on, the trade-offs are covered in more depth in our comparison of low voltage vs high voltage home battery systems.

Fault Line 2 — Can you still expand it in 2029?

Expandability is the entire commercial argument for stackable. Start at 16 kWh, add modules as the load grows. It is a genuinely good argument, and it is the one most often undermined by things nobody puts in the quotation.

Three mechanisms quietly close the door on later expansion.

BMS addressing. Every module in a stack needs a unique address, set by DIP switch or through software during commissioning. Addressing schemes are vendor-specific and sometimes revision-specific. A module from a later hardware revision may use a different addressing map, and a mismatch shows up as a module that powers on, shows a healthy state of charge on its own display, and is invisible to the master.

Firmware drift. BMS firmware gets revised. A stack commissioned on one firmware version and expanded three years later with modules shipped on a newer one can fail to form a single logical pack, or form one that reports capacity incorrectly. The fix is usually a firmware alignment across all modules, which requires the tool, the file, and someone willing to send both.

Cell batch and state-of-health mismatch. Paralleling a three-year-old module with a new one means the older module has measurably higher internal resistance. The stack will work. It will also load the new module harder during high-current events, and the group’s usable capacity tends toward the weakest member rather than the average. This is physics, not a defect, but it changes how you should size the original purchase.

Warranty language interacts with this directly. A cycle rating is measured under laboratory conditions at a defined depth of discharge, and the number on the datasheet is not a promise about a mixed-age stack. We cover how to read those figures against real service life in how long LiFePO4 batteries last.

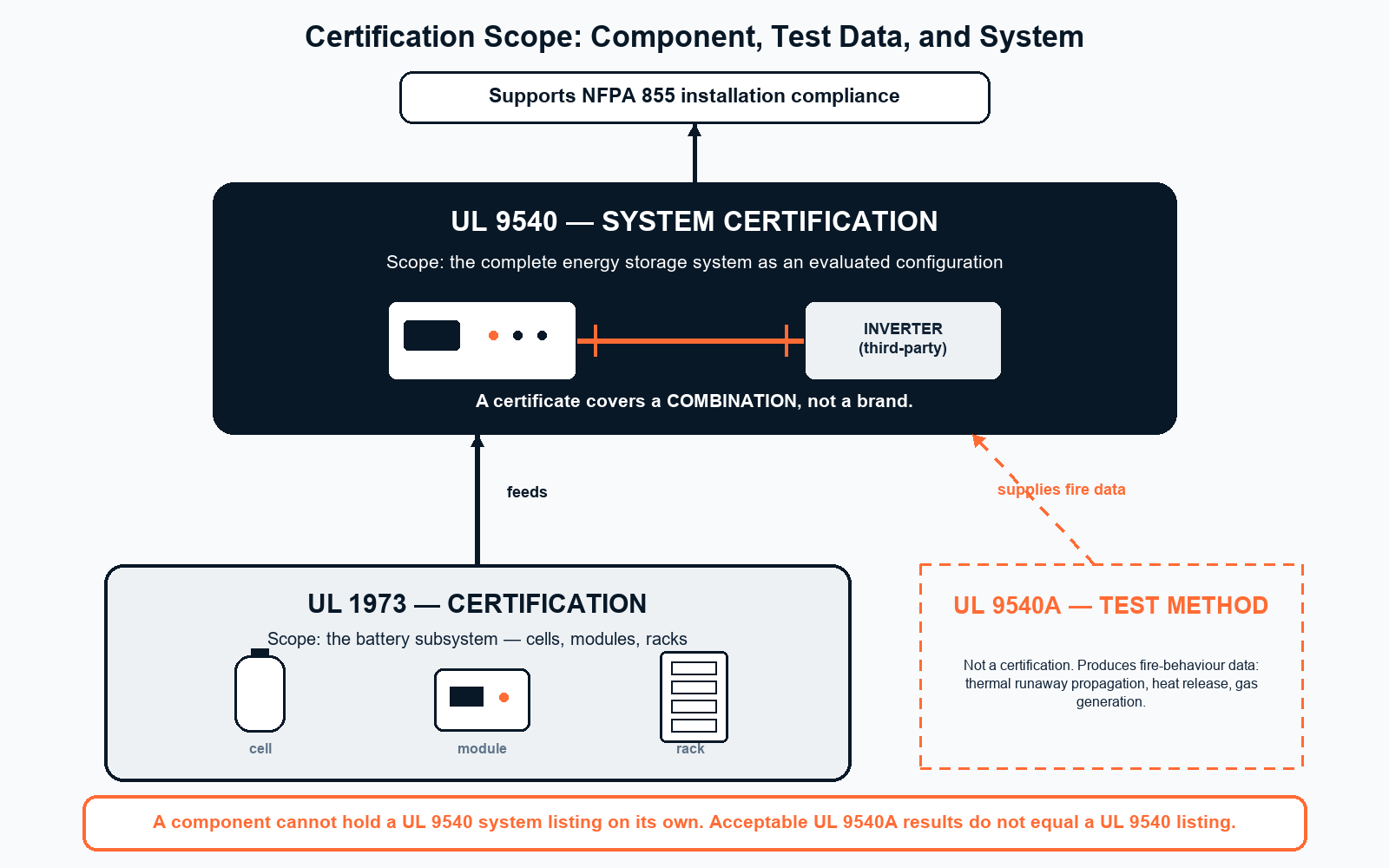

Fault Line 3 — Whose certificate is it, and what does it cover?

This is where quotations are most often technically true and practically misleading, and it is the fault line that produces permit rejections rather than commissioning problems.

Three designations get used interchangeably in marketing copy. They are not interchangeable.

Two consequences follow, and both are load-bearing for a permit submission.

First, UL 9540 is a system listing. Individual components are not UL 9540 listed on their own. The listing attaches to an evaluated configuration, which in practice usually means a specific battery paired with a specific inverter or power conversion equipment. A certificate exists for a combination, not for a brand. When a supplier says “our batteries are UL 9540,” the correct follow-up is: covering which system configuration, and is my inverter in it?

Second, holding acceptable UL 9540A test results does not by itself mean a product meets the requirements for a UL 9540 listing. The test method feeds the certification; it does not substitute for it. A supplier who sends a UL 9540A report when you asked for a UL 9540 certificate has answered a different question, and it is worth establishing whether that was an accident.

NFPA 855, the installation standard your AHJ is most likely working from, is the reason this matters commercially: energy storage devices above roughly 20 kWh are generally expected to be certified to UL 9540 and tested to UL 9540A with acceptable results. Adoption varies by jurisdiction and edition, so the version your inspector uses is the version that counts.

For the practical side of this, meaning what inspectors actually open on site and in what order, see what AHJ inspectors check on a UL 9540 battery permit. The distinction between the certification and the test method is unpacked further in UL 9540 vs UL 9540A, and the standard’s structure in our UL 9540 certification guide for installers.

Fault Line 4 — “On the approved list” is not the same as “commissions cleanly”

Closed-loop communication is what makes a modern stack behave like a battery the inverter understands: state of charge, charge and discharge current limits, temperature derating, and fault states all pass over CAN. Without it the inverter runs open-loop on voltage thresholds alone, which works, but throws away most of the BMS’s usefulness.

The gap buyers fall into is between three different claims, all of which get compressed into the phrase “compatible.”

Approved lists are useful and worth reading carefully, because their entries are narrower than they look: a brand match is not a model match, and a model match is not a firmware match. We work through how one manufacturer’s list is structured, including what happens off-list, in our breakdown of the Deye battery compatibility list.

The practical ask is small and very revealing. A supplier who has genuinely commissioned your inverter model can give you the protocol selection value and the firmware baseline in one reply. One who has not will offer to “check with the engineers,” which is a perfectly honest answer, and also tells you the pairing is new to them.

For reference values while commissioning (resting voltage against state of charge, and the charge stage setpoints you will be programming), keep the 48 V LiFePO4 voltage chart open alongside the manual.

Fault Line 5 — The commercial terms that decide your landed cost

The per-kWh price is the number everyone compares and the number that moves least between serious suppliers. Landed cost moves a great deal, and it moves on terms that rarely appear on the first quotation.

Packed dimensions, not product dimensions. A module might measure roughly 925 × 460 × 245 mm bare. Packed on a pallet with foam, corner protection and a wooden frame it is meaningfully larger, and that is the figure your freight forwarder needs. Container loading is calculated on packed cartons and gross weight, never on the spec sheet dimensions. Ask for the packing list before you model the container, and be aware that lithium batteries also carry weight-driven constraints that can make a container cube out or weigh out well before it looks full.

MOQ against stack logic. A minimum order quantity expressed in units interacts awkwardly with a product designed to be sold in stacks of varying height. If MOQ is 20 units and your pipeline is four-module stacks, you are committing to five complete systems, not twenty spares. Establish whether MOQ is per model or per order, and whether mixed models count toward it.

Spares and warranty execution. A fifteen-year warranty is a statement about intent; the operative question is who performs it and how fast. In a stack, a single failed module does not usually take the system down, but it does derate it, and the replacement has to be address- and firmware-compatible with the survivors — which loops directly back to Fault Line 2.

Dangerous goods paperwork gates the shipment. Lithium batteries move as Class 9 dangerous goods. A UN 38.3 test summary and an MSDS are not optional extras on a certificate list. They are what your forwarder needs to book the container, and a missing or mismatched document stops the shipment rather than delaying it. Check that the UN 38.3 summary names the cell and pack actually being shipped, not a related model, because that mismatch is the version that gets caught at origin.

Installation cost is part of price. Conductor sizing at the stack’s maximum discharge current drives a real material cost that varies between architectures. A 200 A continuous discharge rating implies specific cable and protection choices; our 48 V battery cable size chart covers the sizing method.

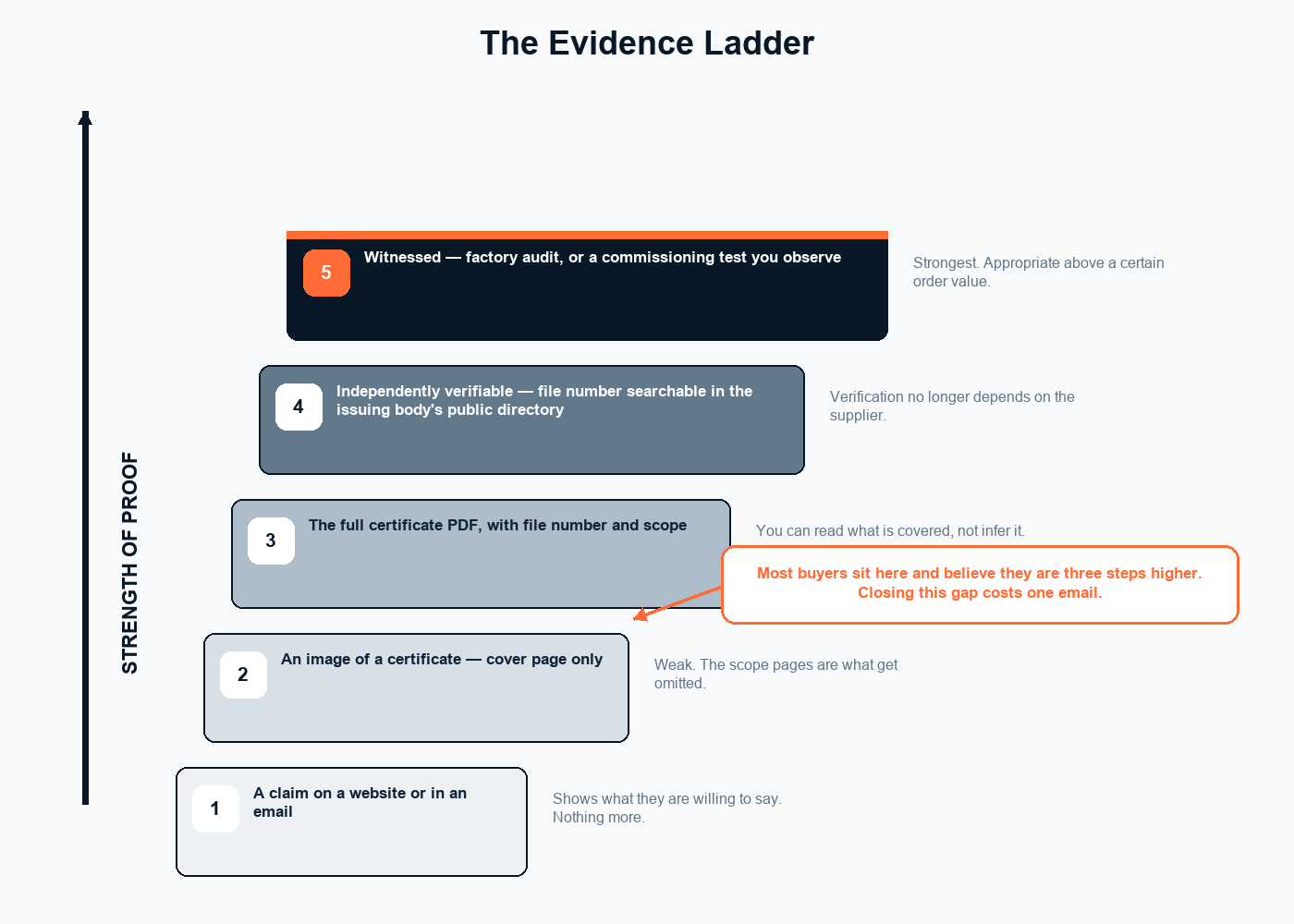

The Evidence Ladder: how much is a supplier’s proof actually worth?

Every answer above arrives as some form of evidence, and evidence in this industry comes in grades. Sorting it is faster than evaluating each claim on its merits.

Most buyers operate at Tier 2 and believe they are at Tier 4. Moving from 2 to 3 costs one email. Moving from 3 to 4 costs ten minutes. That is a large improvement in certainty for very little effort, and it is where we would put the time before a first order.

Tier 5 is not always proportionate. For a first container from a new supplier, or for a project where a permit rejection would be expensive, it usually is. A supplier who welcomes an audit rather than deflecting it has told you something useful before the audit happens.

The question list, ready to paste

A supplier who answers all thirteen in one reply, with attachments, is showing you their documentation discipline. That discipline is the thing you are actually buying, because it is what determines whether year-seven support exists.

Five mistakes we see most often

Frequently asked questions
