48V LiFePO4 Battery Voltage Chart: State of Charge & Charging Voltages (2026)

If you’ve just wired up a 48V LiFePO4 bank and the meter reads 51, 52, maybe 54 volts, your first thought is probably “did I buy a dud — why won’t it hit 48… or 58?” You didn’t, and here’s the short version: a “48V” LFP battery is nominally 51.2V, it charges to nearly 58V, and it spends almost its whole life sitting in a narrow 52–54V band. The number on the box is a label, not an operating voltage. Below is the real 48V LiFePO4 voltage chart — and the one thing most of the charts ranking for this search get wrong: for LiFePO4, voltage is a poor way to read state of charge.

Quick reference: A 48V LiFePO4 battery is a 16-cell (16S) pack, nominal 51.2V (16 × 3.2V). Rested and full it sits near 54.4V; it charges (absorption) to about 56.8–57.6V; half charge is near 52.8V; practical empty is about 48V; and the BMS cuts off near 40V (2.5V/cell) to protect the cells. Because the LFP curve is flat, 20%–90% charge spans only ~52–53.6V — so a voltmeter tells you “full, half, or empty,” not an exact percentage. For that, use a shunt monitor or an inverter that reads the BMS over CAN/RS485.

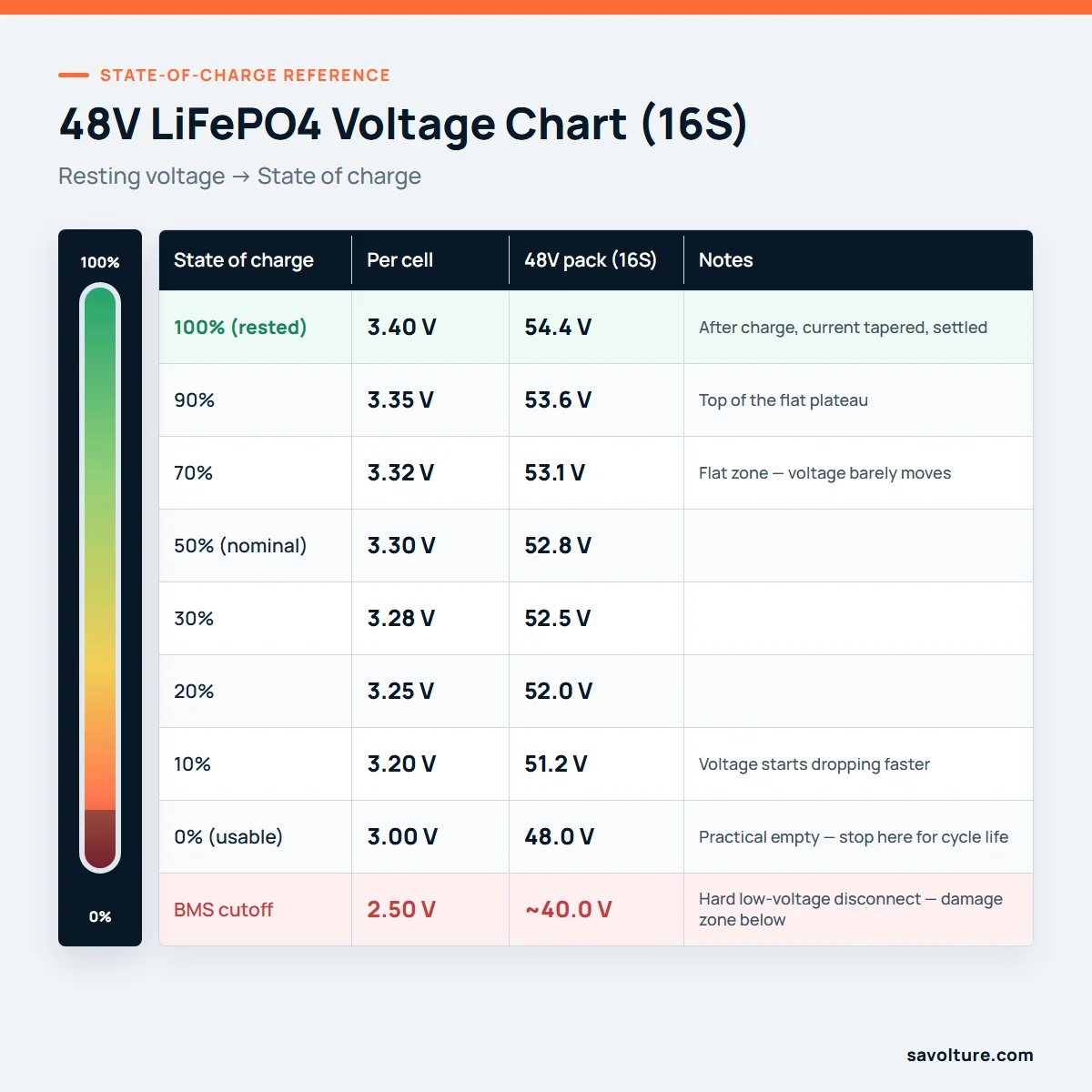

48V (51.2V) LiFePO4 voltage chart — state of charge

These are resting voltages (no charge or discharge current, settled 30+ minutes) for a 16S LiFePO4 pack at room temperature (~25°C / 77°F). The per-cell column lets you check against your BMS readout.

Values are typical for modern 16S LiFePO4 home packs and vary ±0.1–0.2V/cell by brand and temperature. Notice how compressed the middle is — that flatness is the whole story, and it’s where most voltage charts mislead people.

Voltage is a map, not a fuel gauge: the flat-zone trap

Look at the chart again. Between 20% and 90% charge, the pack moves from about 52.0V to 53.6V — roughly 1.5 volts across 70% of the usable capacity. Call it the flat-zone trap: that plateau is exactly what makes LiFePO4 excellent under load (it holds voltage instead of sagging), but it also means a 0.1V reading error equals a 20–30% error in your state-of-charge guess.

This is where a lot of popular LiFePO4 voltage charts go wrong — several describe the curve as “a small change in voltage causes a small change in charge,” which is backwards. It’s the opposite: in the flat zone a tiny voltage change hides a big charge change. So a resting-voltage chart is reliable for three things only: confirming a pack is roughly full, half, or empty, and setting safe charge and cutoff limits. It is not reliable for “I have 47% left.”

For an accurate number you need a shunt-based battery monitor (coulomb counter) that measures current in and out, or a closed-loop inverter that reads the BMS’s own state of charge over CAN/RS485. If accurate SoC matters for backup sizing — and it does — plan for one of those, not a voltmeter. Which inverters can read the BMS is covered in our inverter–battery compatibility guide.

Why your 48V battery reads 51–54V (and won’t hit 58V) — and that’s normal

This is the question behind half the “is my battery broken?” panic, so let’s answer it directly. The voltage you actually see depends on what the battery is doing right now:

• At rest, a full pack reads ~54.4V, not 58V. The 56.8–58.4V numbers are charging voltages — the charger pushes the pack up there, and once it stops and the pack settles, it falls back to the low 54s. A rested full LFP battery sitting at 54V is doing exactly what it should.
• Under discharge, voltage sags. A heavy load can pull a 53V pack down to 50–51V momentarily without the battery being anywhere near empty. The voltage recovers when the load drops.
• “It won’t charge past 51–52V” usually means it’s still mid-charge or the load is masking it — or the inverter’s charge voltage is set too low. A correctly configured charger will take a 16S pack up to ~56.8–57.6V during absorption. (There’s a full diagnostic for this below.)
• Cold weather reads lower and delivers less usable capacity — enough that temperature deserves its own section, next.

So before you decide a battery is faulty: rest it, check whether it’s under load or charging, and confirm your charge settings. Nine times out of ten the “wrong” voltage is the chart’s fault, not the battery’s.

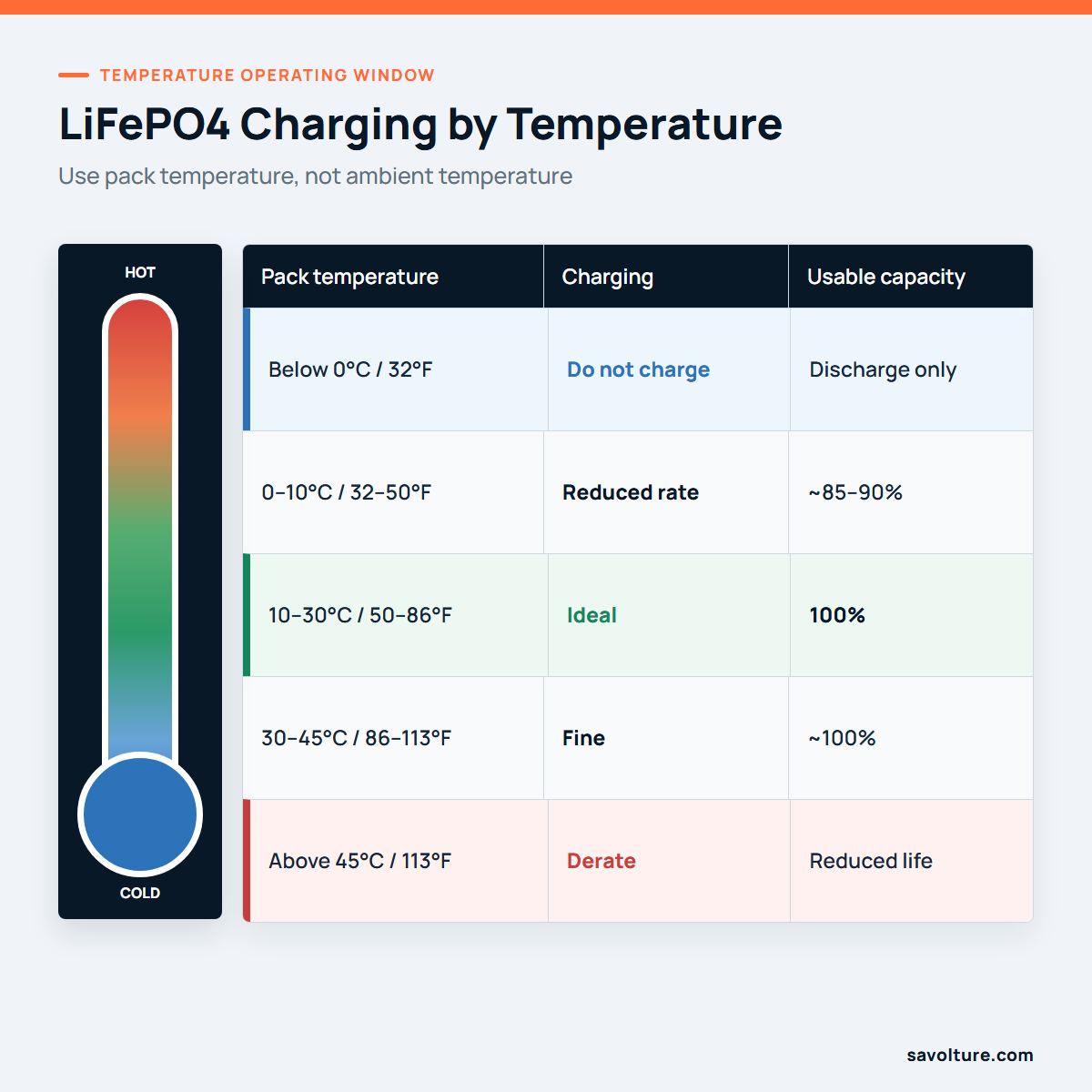

Temperature changes every number in the chart

Every voltage in the table above assumes a comfortable ~25°C (77°F) pack. Move the battery into a cold garage or a hot roof space and two things shift: the usable capacity and the rules for charging. This is the part almost no voltage-chart page covers, and it’s where installers get caught.

Two things surprise people here. First, discharge tolerates cold far better than charge does — an LFP pack will happily deliver power well below freezing; it just must not receive a charge there. Second — and this trips up anyone coming from lead-acid — LiFePO4 needs little or no temperature compensation on charge voltage. The temp-comp coefficient your old AGM charger applied (raising voltage in the cold, lowering it in the heat) is wrong for LFP. Set temperature compensation to zero and let the flat chemistry and the BMS’s low-temp cutoff do the work. Applying lead-acid habits to a lithium pack is one of the most common configuration mistakes we see. For the full charge, discharge, and storage ranges — including the exact temperatures where self-heating pays for itself — see our LiFePO4 operating temperature guide.

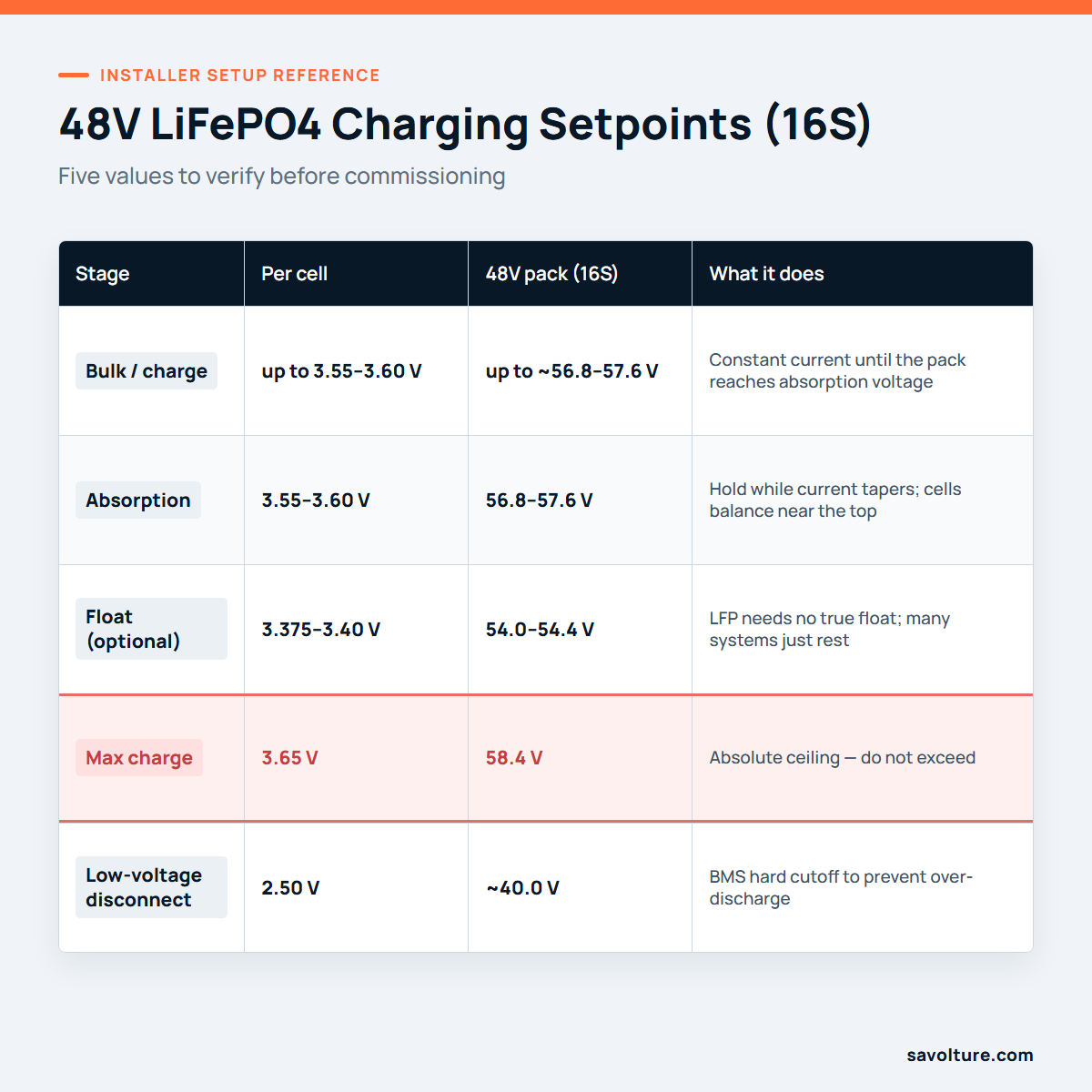

48V LiFePO4 charging voltages: bulk, absorption, float

If you’re configuring a charger or hybrid inverter, these setpoints matter more than the SoC chart, because they decide cycle life. For a 16S LiFePO4 pack:

A common, conservative profile is absorption at 56.8–57.6V with little or no float (or a low 54V float), which fills the pack without parking it at maximum voltage every cycle. Always defer to your specific battery’s datasheet — the BMS thresholds are defined per cell there, and the inverter only needs to charge within them. For the model-level wiring and menu steps, see the 48V hybrid inverter pairing guide.

Why the same charge reads a lower percentage as your pack ages

Here’s a question we get from owners a year or two in: “Nothing changed, but the battery that used to show 99% after a full charge now tops out at 97%, and it seems to empty faster. Is it dying?” Almost always, no — you’re seeing what we’ll call the capacity-fade voltage shift, and it’s normal LFP behaviour rather than a fault.

Two separate things are happening as cells accumulate cycles and calendar time:

• The pack genuinely holds a little less energy. LFP fades slowly — a quality pack still has ~80% of its original capacity after several thousand cycles. But “100% full” this year stores fewer kWh than it did new, so the same household load drains it a bit faster. That’s the “empties quicker” half. How fast this clock actually runs depends on temperature and depth of discharge — we break down the math in how long do LiFePO4 batteries last.
• The BMS’s percentage estimate drifts between calibrations. A BMS learns the pack’s true capacity by watching complete charge/discharge cycles. If you rarely take the pack to a full 100% absorption hold, its internal “full” reference slowly desynchronises, and the displayed percentage wanders. This is the “won’t hit 100% anymore” half — and it’s often fixable.

The voltage chart itself barely moves per cell as the pack ages — what changes is that internal resistance rises, so an aging pack sags more under load and recovers more slowly, making a voltage-only reading even less trustworthy than it was when new. That’s one more reason the flat-zone trap gets worse with age, not better.

What to actually do: run a full charge to a complete absorption hold every few weeks to let the BMS recalibrate; once or twice a year, measure real capacity with a shunt over one full discharge and compare to the nameplate Ah. Gradual fade toward ~80% of rated is expected life, not failure — plan replacement thinking only when you drop well below that or see one cell diverging from the pack.

How to read state of charge accurately

Because voltage is unreliable in the flat zone, here’s the practical hierarchy, worst to best:

1. Resting voltage — free, but only good for “full / half / empty.” Rest the pack first or it’s meaningless.
2. Shunt / coulomb counter — measures current in and out; accurate to a few percent once calibrated. The right tool for a DIY bank without closed-loop comms.
3. Closed-loop BMS reading — the battery’s own BMS reports state of charge to the inverter over CAN/RS485, and the inverter displays and acts on the real number. This is the most accurate and the least fuss, because the battery does the counting.

For a home backup system where you need to trust the “% remaining” on the screen, a battery that reports true SoC to an open hybrid inverter is worth specifying up front. That’s the closed-loop pairing we confirm before you buy.

Diagnostic: “it charges to 51V and stops” — the 3-check

Of every “my battery is broken” message, the most common specific version is some flavour of “it won’t charge past 51-point-something volts.” Before you suspect the pack, run these three checks in order — the fault is upstream of the battery far more often than not.

1. Is it actually resting, or still working? A pack reading 51V under load can be 60–70% full — the load is dragging the terminal voltage down. Disconnect the load, wait, and re-read. If it climbs into the 52s or 53s, there was never a problem.
2. What is the inverter’s charge voltage set to? This is the usual culprit. If absorption is configured at, say, 51–52V (a leftover lead-acid or a too-conservative custom value), the charger stops pushing exactly where you’re seeing it stall. A 16S LFP pack wants absorption at 56.8–57.6V. Raise the setpoint to the battery’s datasheet value and the “ceiling” disappears. If you’re on a Deye inverter, see the Deye approved battery list for the correct setup codes.
3. Is the BMS holding back for a real reason? If the charge voltage is correct and the pack still refuses to rise, the BMS may be limiting charge because it’s too cold (see the temperature section — below 0°C it will block charge entirely) or because one cell has run away from the others and hit its per-cell ceiling early. A closed-loop inverter or the battery’s app will show per-cell voltages; a single cell sitting high while the pack average is low means the pack needs balancing, not replacing.

Only after all three check out is it worth escalating to the supplier. In practice, step 2 resolves the large majority of these.

Common mistakes reading 48V LFP voltage

The support calls we get from installers reading a 48V pack in the field nearly always come down to the same misreadings below — almost never a faulty battery.

• Reading SoC off a loaded pack. A voltmeter on a battery that’s charging or discharging shows you the load, not the charge. Rest it first.
• Expecting a full pack to read 58V. 58V is a charging voltage; a rested full LFP pack reads ~54.4V. Both are correct.
• Trusting voltage in the flat zone. Between 20–90%, voltage is nearly useless as a gauge — use a shunt or closed-loop BMS data.
• Carrying over lead-acid temperature compensation. LFP wants zero temp-comp on charge voltage; the only temperature rule that matters is “no charging below freezing.”
• Setting absorption too high. Pushing toward 58.4V every cycle stresses cells for almost no extra usable energy; 56.8–57.6V fills the pack with more margin.
• Confusing BMS cutoff with “empty.” The ~40V cutoff is a damage-prevention floor, not a daily target. Size usable energy around 80% depth of discharge for everyday cycling (up to 90–95% as a technical limit), and stop near 48V in normal use.
• Guessing cable size from voltage alone. A 48V system runs higher current than 96V or HV for the same power — which means cable gauge matters more. Use our 48V battery cable size chart to get the right AWG for your run length.

Frequently asked questions

What voltage is a 48V LiFePO4 battery fully charged?

About 56.8–57.6V while charging (absorption), settling to roughly 54.4V at rest once the charge current stops. The absolute maximum is 58.4V (3.65V/cell), which you should not exceed. The “48V” label is the nominal rating (51.2V); LFP packs always charge well above their nominal voltage, so a rested pack reading in the low 54s is full and normal.

Why does my 48V battery only read 51–52V?

Usually because it’s under load, mid-charge, or partially discharged — all normal. 51.2V is the nominal voltage and also roughly the 10% mark at rest, while a heavy load can briefly sag a healthy pack into the low 50s. Rest the pack with no load and no charge for 30 minutes, then compare to the chart. If it settles near 52.8V it’s about half full; near 54V it’s full. If it genuinely won’t charge past the low 50s, run the 3-check diagnostic above — a low inverter charge-voltage setting is the usual cause.

Why does my battery show a lower percentage at the same charge than it did last year?

This is normal aging, not failure. Two things combine: the pack holds slightly less energy as cells accumulate cycles (so a full charge stores fewer kWh than when new), and the BMS’s percentage estimate drifts if it rarely sees a complete full-charge cycle to recalibrate against. Run a full charge to a complete absorption hold every few weeks to let the BMS relearn “100%,” and once or twice a year verify real capacity with a shunt. Gradual fade toward ~80% of rated capacity is expected service life.

Does temperature change the 48V voltage chart?

Yes. The chart assumes ~25°C (77°F). In the cold, usable capacity drops and voltage reads a little lower; critically, an LFP pack must not be charged below 0°C (32°F) without a self-heating function, though it can still discharge. In heat above ~45°C (113°F), the pack still works but ages faster. Unlike lead-acid, LiFePO4 needs essentially no temperature compensation on charge voltage — set temp-comp to zero.

What is the nominal voltage of a 48V LiFePO4 battery?

51.2V. A 48V LFP pack is 16 cells in series (16S), and each LiFePO4 cell is 3.2V nominal — 16 × 3.2V = 51.2V. You’ll see both “48V” and “51.2V” used for the same battery.

Can I use voltage to tell how charged my LiFePO4 battery is?

Only roughly. The LiFePO4 curve is flat, so between about 20% and 90% the pack voltage moves only ~1.5V — a small reading error becomes a large SoC error, and it gets worse as the pack ages and its internal resistance rises. Use a shunt-based battery monitor or a closed-loop inverter that reads the BMS state of charge for accuracy; use voltage only to confirm “full, half, or empty.”

What should I set my inverter charge voltage to for a 48V LFP battery?

A common conservative setup is absorption at 56.8–57.6V with little or no float (or ~54V float), never exceeding 58.4V. Always match your specific battery’s datasheet, since the BMS thresholds are set per cell. If your inverter runs closed-loop with the battery, it follows the BMS limits automatically.

At what voltage is a 48V LiFePO4 battery empty?

Practical empty is around 48V (3.0V/cell) — stop there in everyday use to protect cycle life. The BMS hard cutoff is near 40V (2.5V/cell), a damage-prevention floor rather than a daily target. Below about 10%, voltage drops quickly, so it becomes a more reliable “nearly empty” signal at the bottom than in the middle.

Next steps

• Choosing an architecture first? Read low voltage vs high voltage home batteries and 48V vs 24V vs 12V.
• How long will this pack last? See how long do LiFePO4 batteries last — the two clocks that decide real service life.
• Sizing the cables? Use the 48V battery cable size chart to get the right AWG for your run length and current.

Bottom line: a 48V LiFePO4 battery lives between roughly 48V (empty) and 57.6V (charging), nominal 51.2V, resting full near 54.4V. Its flat curve makes voltage a map, not a fuel gauge — and temperature and age only widen the gap between what the meter says and what’s really in the pack. Set your charge limits from the datasheet, read state of charge from a shunt or the BMS, keep the pack out of the cold while charging, and a “low” reading will stop looking like a fault.
