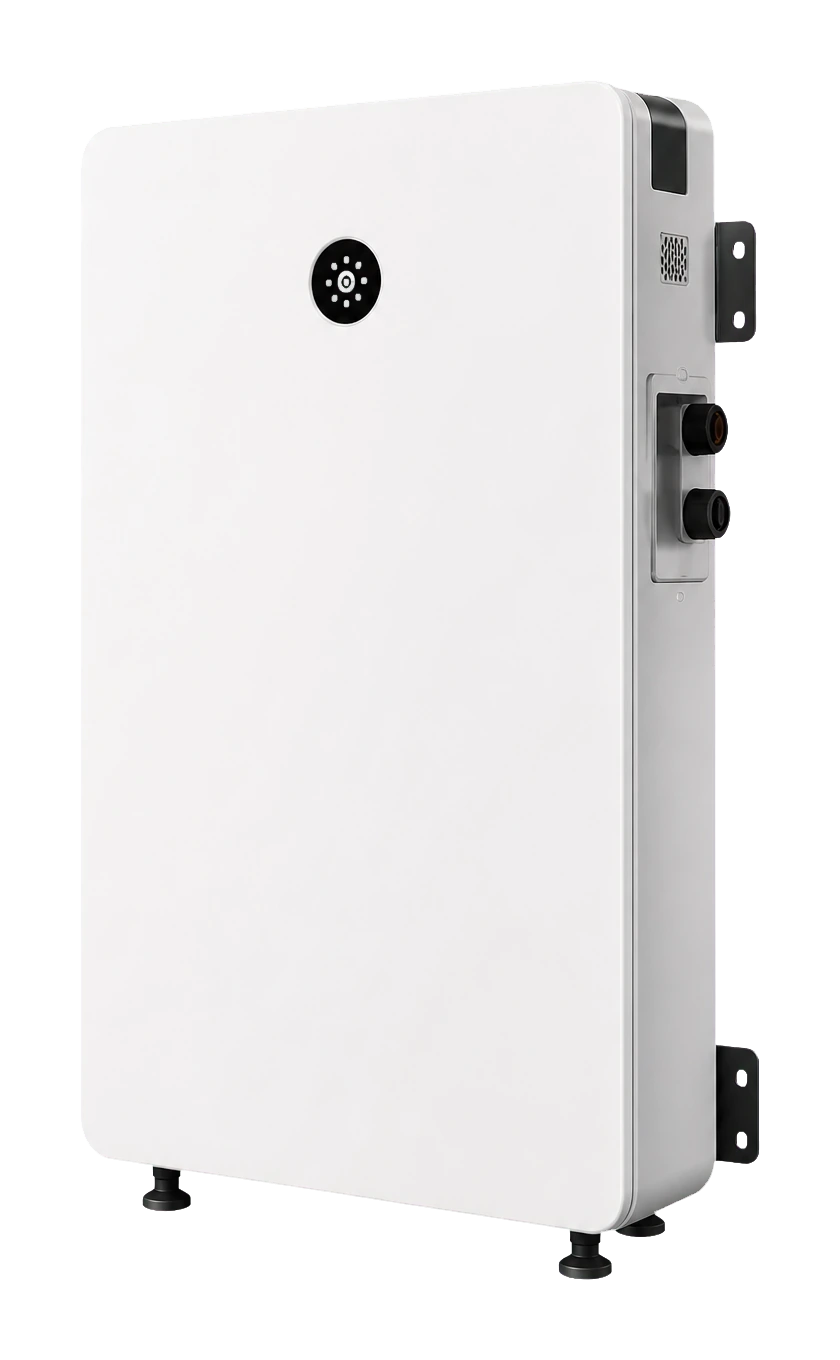

200Ah lithium battery for solar & backup
10.24 kWh wall-mounted LiFePO4 storage with 6,500 cycles. Compact footprint for residential off-grid and grid-tied projects.
10.24 kWhCapacity
6500+Cycles
51.2VNominal
24-HourQuote
Where 200Ah Batteries Power Your Projects
Whether your project is grid-tied backup, off-grid, or hybrid storage, the inverter category decision shapes the system architecture. See our hybrid vs off-grid vs grid-tied buyer guide for the framework.

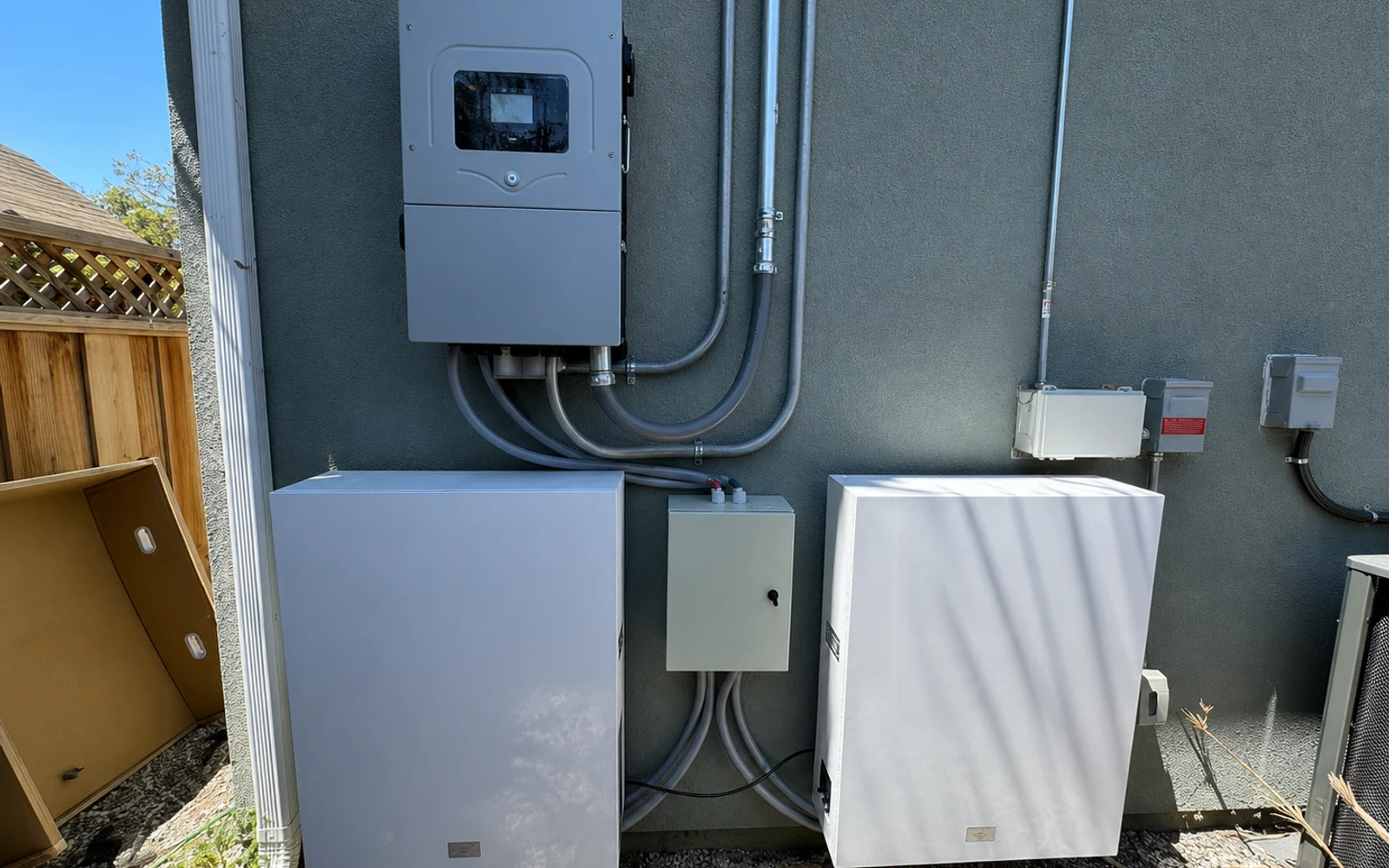

Essential Home Backup
Keep lights, fridge, and communication running during 8-12 hour outages with a single 200Ah lithium battery.
Request Quote →
Small Off-Grid Cabin
10 kWh covers daily essentials for a 1-2 person off-grid cabin with 2-3 kW solar input.
Request Kit Pricing →

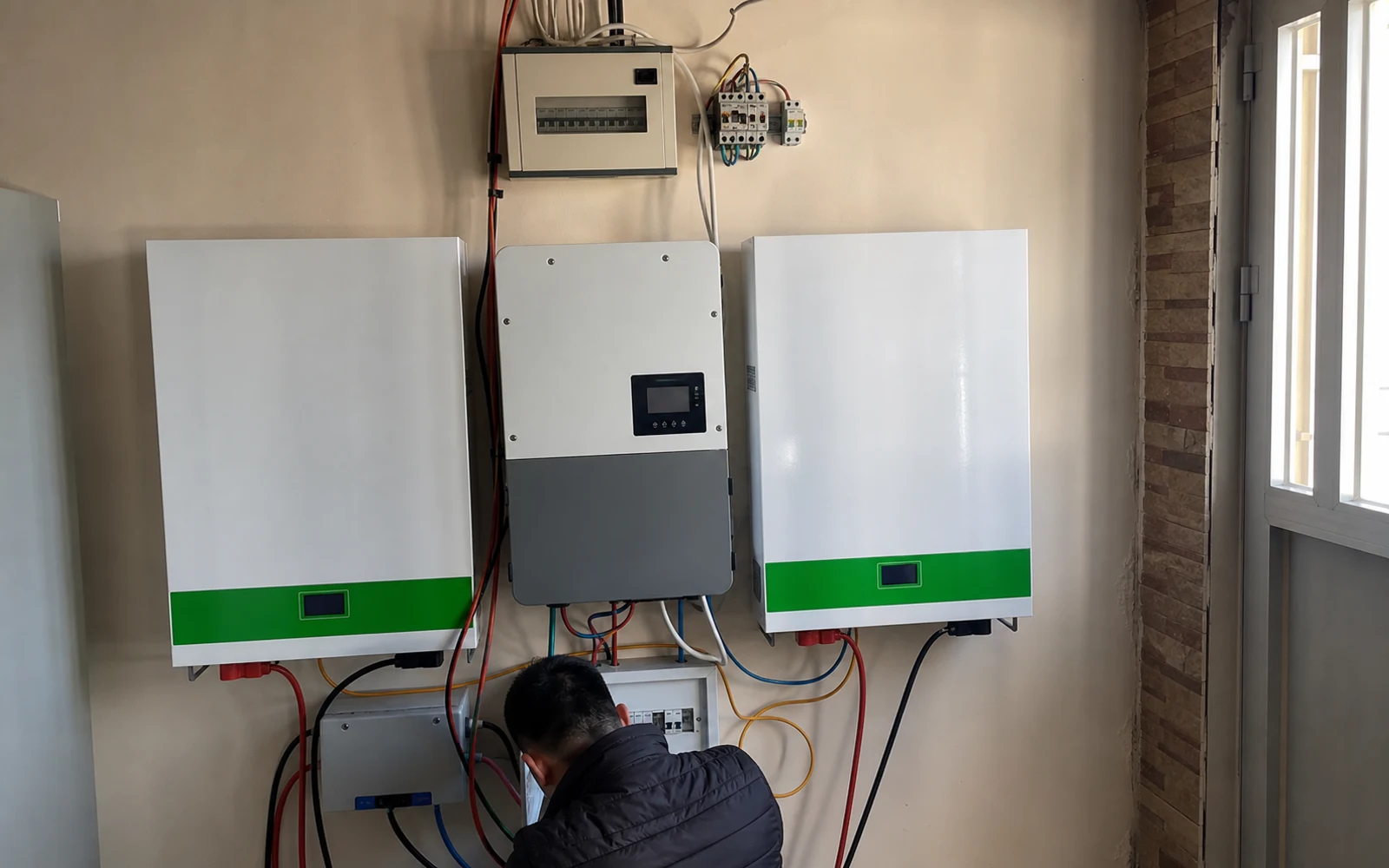

Starter Solar Storage
Begin with one 200Ah unit and parallel additional batteries as your solar system grows.
See 48V Battery Systems →Compare the Savolture LFP Lineup
Same 48V LFP platform, four form factors — choose by capacity (10–16 kWh) and footprint (wall, floor, or rack-modular).
Wall-Mounted
200Ah · 10.24kWh- IP20/IP65 options
- 6,500 cycles
- 84.5 kg class
Wall-Mounted
280Ah · 14.34kWh- UL9540 listed system path
- 8,500 cycles
- 142.5 kg class
Floor-Standing
314Ah · 16.08kWh- UL9540 listed system path
- IP65 outdoor option
- 145.5 kg class
Rack Modular
10–15kWh System- 19 inch server rack compatible
- Modular battery banks
- CAN/RS485 communication
Why Choose a 200Ah Lithium Battery?
Picking between 100Ah and 200Ah depends on your project profile, load growth, and install constraints. See our 100Ah vs 200Ah selection framework for the decision math, or read the LFP vs lead-acid cost comparison if you are upgrading from an existing lead-acid bank.
Compact 10 kWh Storage
A single 200Ah battery delivers 10.24 kWh – enough to cover essential loads for a typical home during overnight hours or grid outages.
Wall-Mount Space Saver

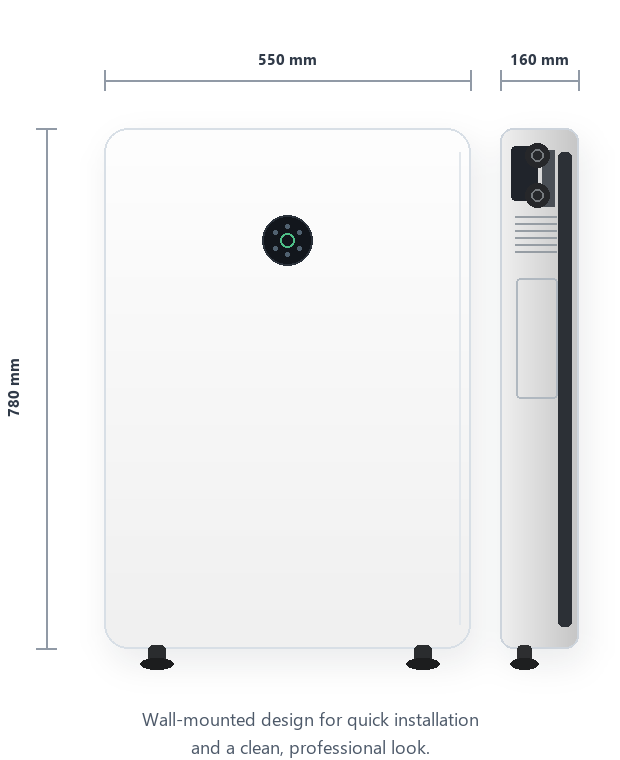

At 780 x 550 x 160 mm, this 200Ah LiFePO4 battery mounts flat against a garage or utility wall without taking floor space.
Scalable to Your Needs
Parallel up to 16 units for 163 kWh total capacity. Start with one 200Ah battery and expand as energy needs grow.
200Ah Battery Technical Details
| Model | GSL Power Storage Wall 200Ah |
|---|---|
| Capacity | 200Ah |
| Energy | 10.24 kWh |
| Nominal Voltage | 51.2V |
| Max Charge Current | 150A |
| Max Discharge Current | 150A |
| Cycle Life | 6,500 cycles @ 80% DoD |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Certifications | IEC62619 |
| IP Rating | IP20 indoor / IP65 outdoor option |
| Dimensions | 780 x 550 x 160 mm |
| Weight | 84.5 kg |
| BMS | Built-in smart BMS |
| Communication | CAN / RS485 |
| Installation | Wall mount |
| Warranty | 15 years |
200Ah vs Other Savolture Batteries
| Parameter | 200Ah | 280Ah | 314Ah |
|---|---|---|---|
| Energy | 10.24 kWh | 14.34 kWh | 16.08 kWh |
| Form Factor | Wall-Mount | Wall-Mount | Floor-Standing |
| Cycles | 6,500 | 8,500 | 8,500 |
| UL9540 | – | Yes | Yes |
| Weight | 84.5 kg | 142.5 kg | 145.5 kg |
| Best For | Essential backup, small off-grid | Whole-home backup | Max capacity, outdoor |
| Details | Current Page | View 280Ah → | View 314Ah → |
Compatible 48V Inverters
For matched hybrid inverter pairing, see the Savolture hybrid inverter series (5-30 kW US split-phase). For the full sizing rules between inverter and battery, read our hybrid inverter + battery pairing guide; for voltage class context, see the 48V vs 24V vs 12V voltage decision.
Schneider
Victron
Based on GSL 51200 protocol support records for 48V battery systems. Confirm inverter model, firmware, communication protocol, and region before commissioning.
Built for Solar Installers and Distributors
Certification Docs
IEC62619 documentation support for installer and distributor review.
In-House BMS
Smart BMS protection with CAN and RS485 communication.
15-Year Warranty
Long-term coverage options for residential storage projects.
24-Hour Quote
Project sizing, inverter pairing, and pricing response within 24 hours.
Frequently Asked Questions
How many solar panels do I need for a 200Ah lithium battery?
With a 51.2V system, a 200Ah battery has 10.24 kWh capacity. To fully charge from solar in 5 peak hours, you need roughly 2-2.5 kW of solar panels, or about 4-5 x 500W panels, depending on the charge controller and location.
How long will a 200Ah battery power my home?
A 200Ah lithium battery at 51.2V provides 10.24 kWh of stored energy. At 80% DoD, that is roughly 8.2 kWh usable. For essential loads averaging 500-700W, expect about 12-16 hours of backup.
Can I use a 200Ah lithium battery for off-grid living?
Yes. A single 200Ah unit works well for small off-grid cabins with modest energy needs. For a full off-grid home, consider paralleling 2-3 units or stepping up to a 280Ah or 314Ah model for more capacity.
What is the difference between 200Ah and 200 amp hour?
They are the same thing. 200Ah, or ampere-hours, and 200 amp hour describe identical capacity. At 51.2V nominal, both equal 10.24 kWh of stored energy.
Is a 200Ah LiFePO4 battery better than lead-acid?
LiFePO4 delivers more usable capacity, lasts much longer, weighs less, and requires no maintenance compared with lead-acid. The upfront cost is higher, but total lifetime cost per kWh is usually lower.
What certifications does the Savolture 200Ah battery have?
The Savolture 200Ah battery carries IEC62619 international safety certification. For projects requiring UL9540 system-level listing, see our 280Ah and 314Ah models.
Is 10.24 kWh enough to back up my whole home?
For partial-load backup (lights / fridge / WiFi / a single AC zone), 200Ah lasts 1-2 days. For whole-home essential loads, run your usage through our battery bank calculator — many US single-family homes need 2-3× 200Ah or a 314Ah unit.
Ready to Quote Your 200Ah Battery System?
Send your project specs – receive a complete proposal with inverter pairing within 24 hours. For broader US storage market context, see the U.S. Department of Energy solar energy storage reference.
