Field proof
Installed. Certified. Proven.
Machine-focused installation examples for residential storage projects. Additional no-logo project photos can be added as the library grows.

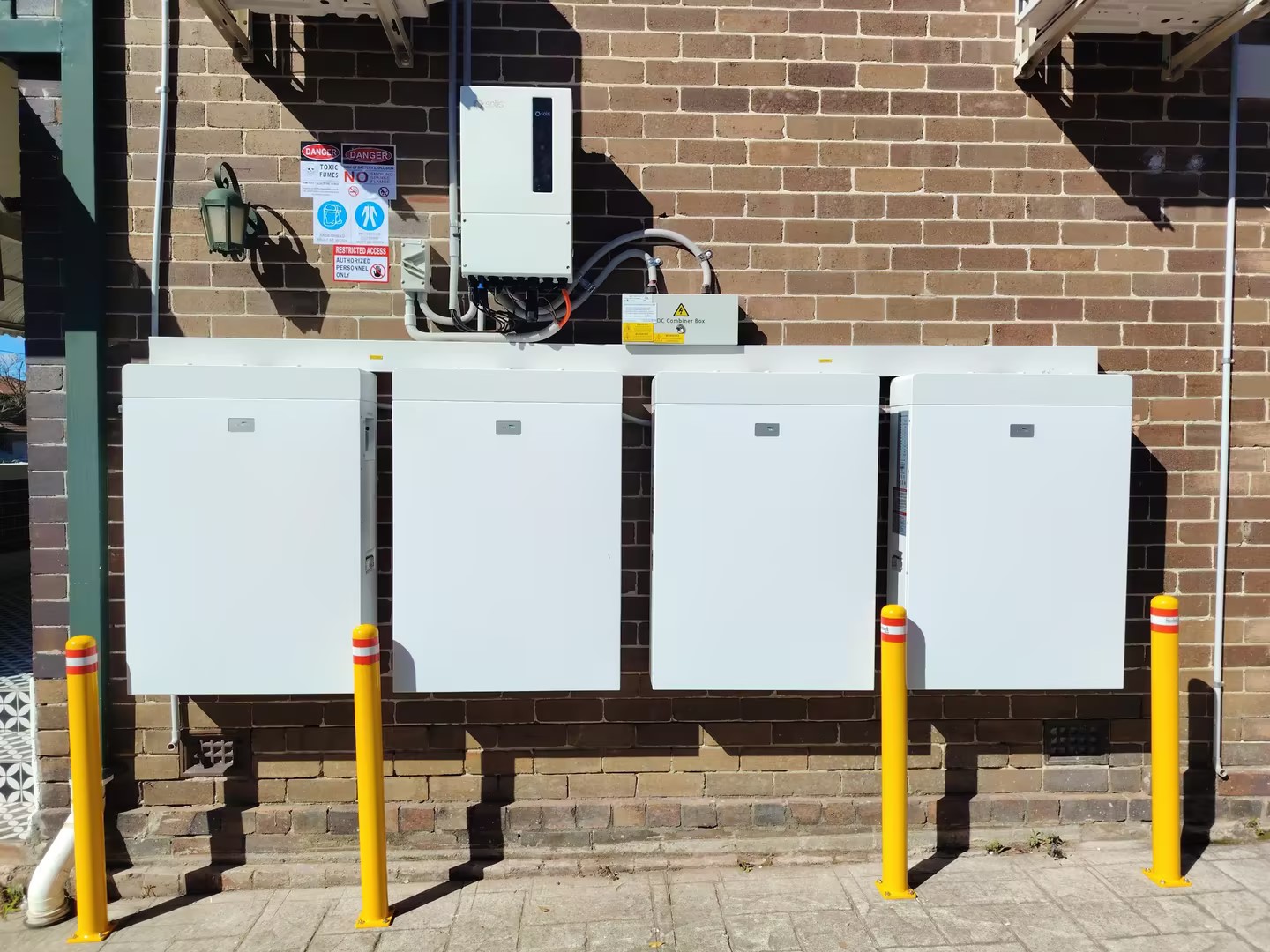

Whole Home Backup
4 × UL9540 systems installed outdoors for higher-capacity residential backup.

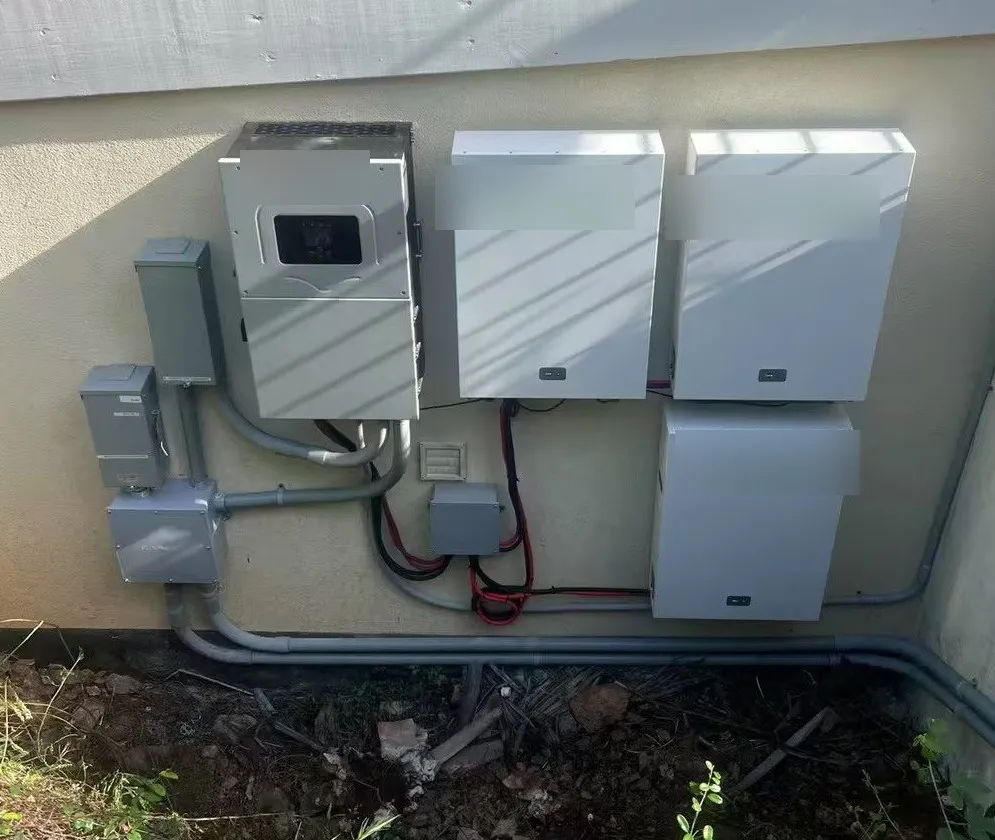

Side-Yard System
Battery and inverter configuration for a compact residential equipment area.

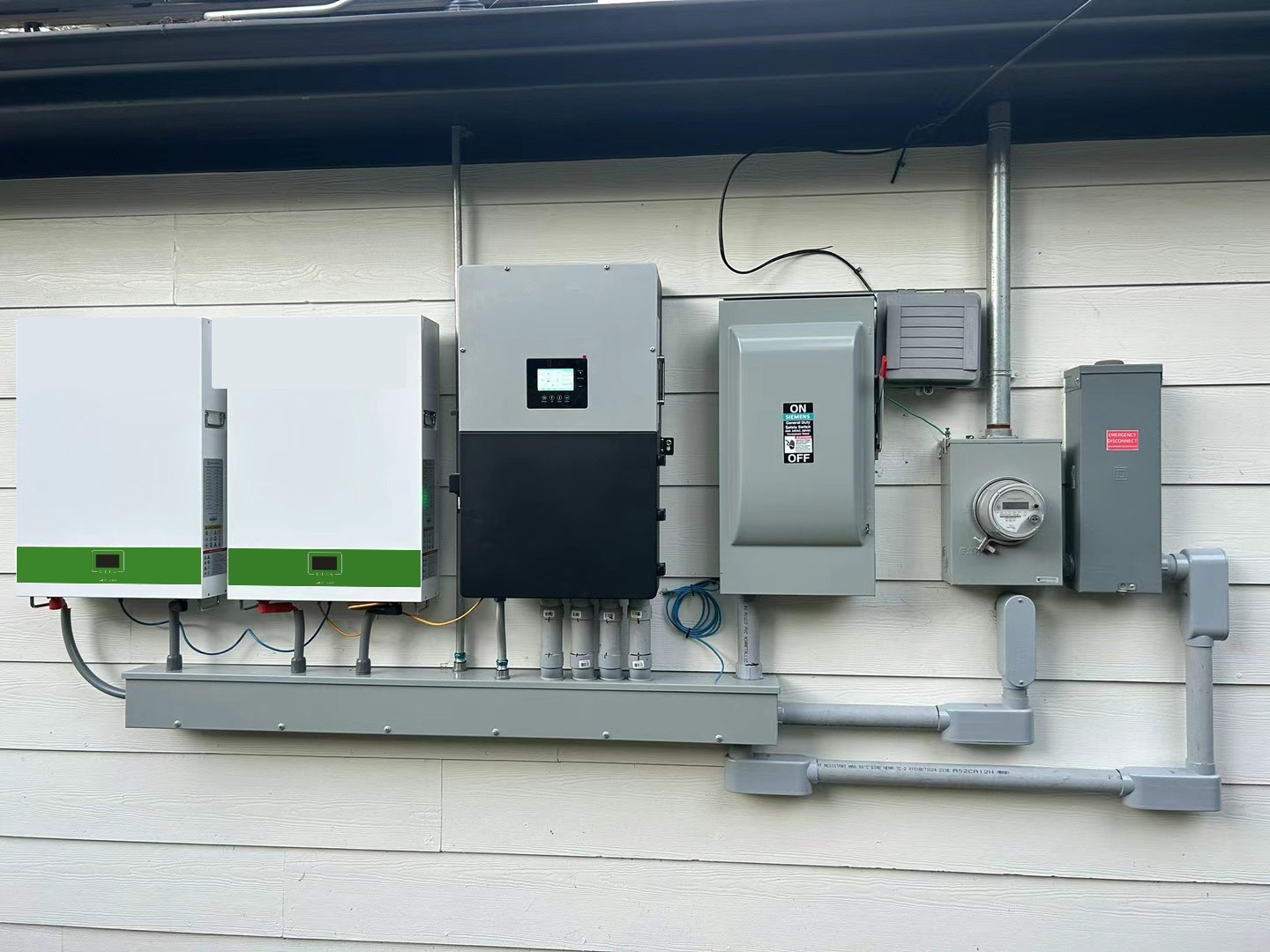

Exterior Wall Layout
Clean conduit and equipment spacing for permit-driven installer workflows.

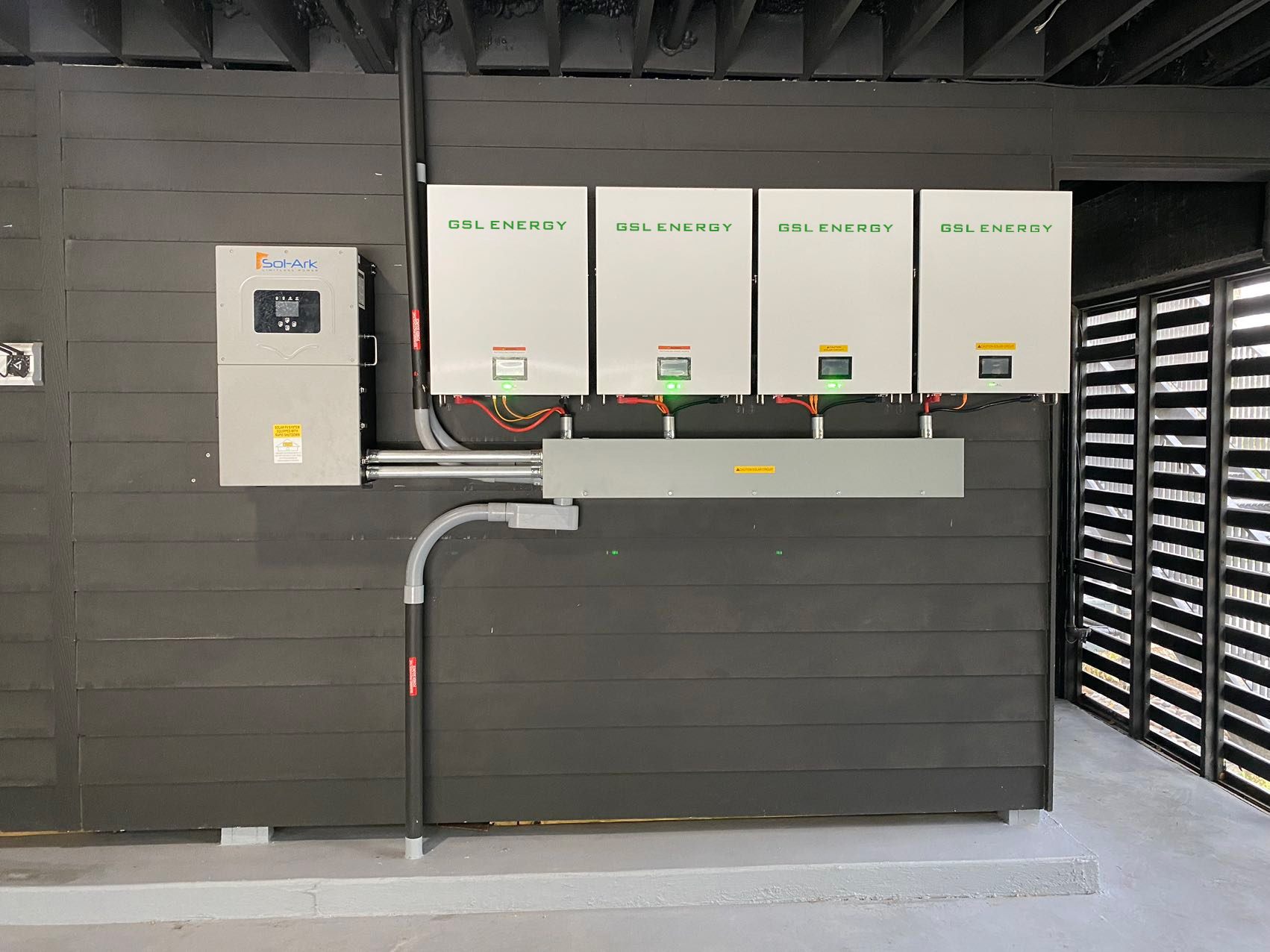

High-Capacity Storage
Wall-mounted battery bank for larger home and project pallet positioning.
Compliance
Built to the Highest Safety Standards
Certified for North American residential energy storage installations.
UL 9540
Energy storage systems and equipment certification for qualified configurations.
UL 9540A
Thermal runaway evaluation documentation for AHJ and permit review.
UL 1973
Battery safety standard for stationary and light electric rail applications.
UN 38.3
Transportation safety testing for lithium battery shipment workflows.
System sizing
Flexible System Configurations
Modular design scales with project needs. Connect up to 16 units in parallel for higher capacity.
1 Battery
14.34 kWh
51.2 V · 14.34 kWh
Ideal for smaller homes and critical-load backup.
2 Batteries
28.68 kWh
51.2 V · 28.68 kWh
Extended runtime for mainstream solar-plus-storage jobs.
4 Batteries
57.36 kWh
51.2 V · 57.36 kWh
High capacity for larger homes and critical loads.
8 Batteries
114.72 kWh
51.2 V · 114.72 kWh
Designed for large homes, villas, and light commercial backup.
Inverter pairing
8-12kW U.S. Split-Phase Inverter Platform

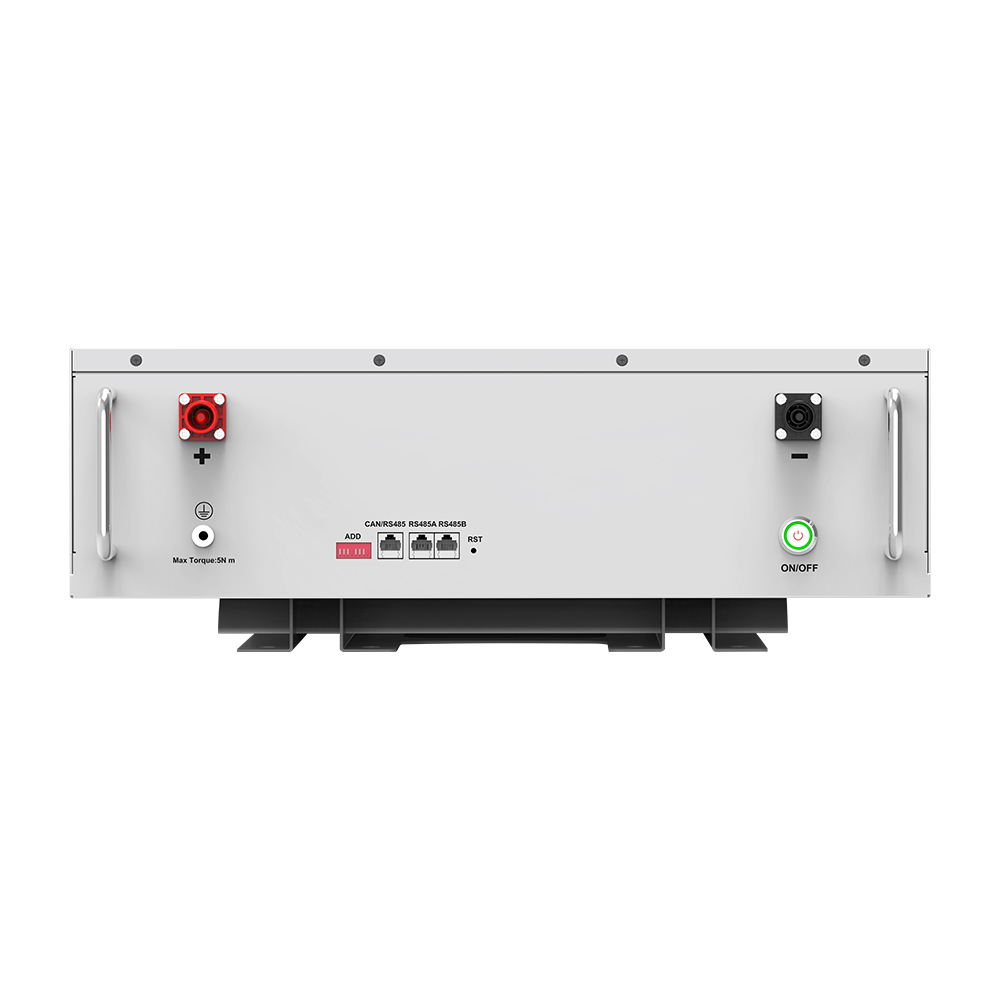

Pair the 14.34kWh LFP battery with 8kW, 10kW, or 12kW 120/240Vac inverter configurations for installer-ready residential systems.
| Model | Power | Output | Battery | Parallel |
|---|---|---|---|---|
| GSL-8K-US | 8.8kW | 120/240Vac | 48V | Up to 6 |
| GSL-10K-US | 10kW | 120/240Vac | 48V | Up to 6 |
| GSL-12K-US | 12kW | 120/240Vac | 48V | Up to 6 |
Installer documents
Open the Documents Your Project Team Needs
Keep the document workflow compact. Every file opens in a new browser tab for quick review by installers, EPCs, and distributor teams.
Installer-Ready Documentation
Cut sheets, CAD files, certificates, and installation manuals for submittals.
Download Center →Technical Support for Pros
Get project-level support for configuration, inverter pairing, and documents.
Contact Support →15-Year Battery Warranty
Long-term confidence for installer proposals and distributor programs.
Warranty Details →Project & Pallet Inquiries
Volume pricing and lead-time support for projects and channel partners.
Request Quote →
